This detailed guide to compression adapters breaks down how they link tubing and small-diameter pipes for secure plumbing. The information is suited to homeowners, professional installers, and customers looking for matching components through Installation Parts Supply.
1 2 Female Compression To 1 2 Male NPT
Compression adapters function by tightening a ferrule against the pipe and fitting body, creating a watertight seal. They are widely used in residential, business, and plant plumbing systems.
This guide reviews different types, sizes, materials, and proper installation methods. It also covers problem diagnosis and installation scenarios. It highlights the importance of converting between 3/8 and 1/2 in. sizes and matching thread types such as NPT versus compression. For strong performance, the guide mentions stainless steel choices.
It is important to follow manufacturer torque and turn specifications. For soft tubing such as PEX, install tubing inserts whenever the manufacturer or application calls for them. Avoid mixing ferrules or fitting bodies from different brands to prevent leaks and galling.
Essential Takeaways
- Compression adapters create seals by tightening a ferrule onto the tubing.
- Common sizes and materials for many plumbing tasks are offered through Installation Parts Supply.
- Choose copper according to pressure rating, water chemistry, and the surrounding environment.
- Match thread types and sizes precisely when converting between 3/8 and 1/2 in. fittings.
- Follow manufacturer torque guidance and use inserts when working with flexible tubing.
Compression Adapters And Compression Fittings Explained
Compression adapters connect tubing by mechanically squeezing a ferrule onto the tubing outer diameter. Unlike threaded connectors or push-fit fittings, these parts seal through ferrule compression rather than thread engagement or grab rings. A compression adapter uses metal deformation, not thread engagement or internal grab rings.
Below are concise explanations of each part and how they work together.
What Is A Compression Adapter And How It Differs From Other Fittings
A compression adapter is a type of compression fitting used to connect pipes or tubes without soldering. It works by pressing a compression ferrule into a tapered compression fitting body as the compression nut is tightened. That approach is different from threaded joints, which rely on matched threads and thread sealant. It also differs from push-fit vs compression options, where push-fit uses elastomeric seals and retention clips for quick assembly.
Main Components: Nut, Ferrule Olive, And Fitting Body
The three primary parts are the compression nut, the compression ferrule, and the compression fitting body. The nut delivers axial force. The ferrule, sometimes called an olive, compresses to bite into the tubing. The fitting body contains a tapered bore that positions the ferrule.
Certain designs include a rear ferrule that reduces seal stress and makes disassembly easier.
How Compression Adapters Create A Leak-Tight Seal
Tightening the compression nut moves the ferrule into the fitting body’s taper. Radial compression causes the ferrule to press against the tubing, creating a line-contact seal. When the ferrule is fully aligned, the joint helps stop leaks under normal pressure and temperature conditions.
Compression joints and compression fittings suit copper, brass, stainless steel, and many hard plastics. Before assembly, installers should confirm tubing compatibility and apply the maker’s torque or turn-count guidance.
| Part | Job | Primary Advantage |
|---|---|---|
| Nut | Provides axial force that seats the ferrule | More controlled assembly and service |
| Compression ferrule | Forms the tube-gripping seal | Pressure-resistant seal at the tube |
| Fitting body | Taper guides and seats the ferrule | Consistent alignment and a stable sealing surface |
| Rear ferrule when present | Separates tightening force from final seal action | Better reassembly and reduced tube damage |
Common Compression Adapter Sizes And Type Conversions
Adapting between 1/2-inch and 3/8-inch tubing is often required. It is necessary to select the right reducer or adapter. The right part aligns with tubing OD, thread style, and fitting gender. Correct selection reduces the chance of leaks, extra adapters, and avoidable rework.
Half inch to three eighths adapter choices
For supply-line jobs, parts such as the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are commonly selected. These fittings convert a 1/2-inch supply feed to a 3/8-inch inlet. They may be found as one-piece reducers or two-piece compression adapter assemblies. The design maintains a continuous tube seal. Before buying, check carefully whether the listed size refers to tubing OD or nominal pipe size.
Male and female adapter and reducer combinations

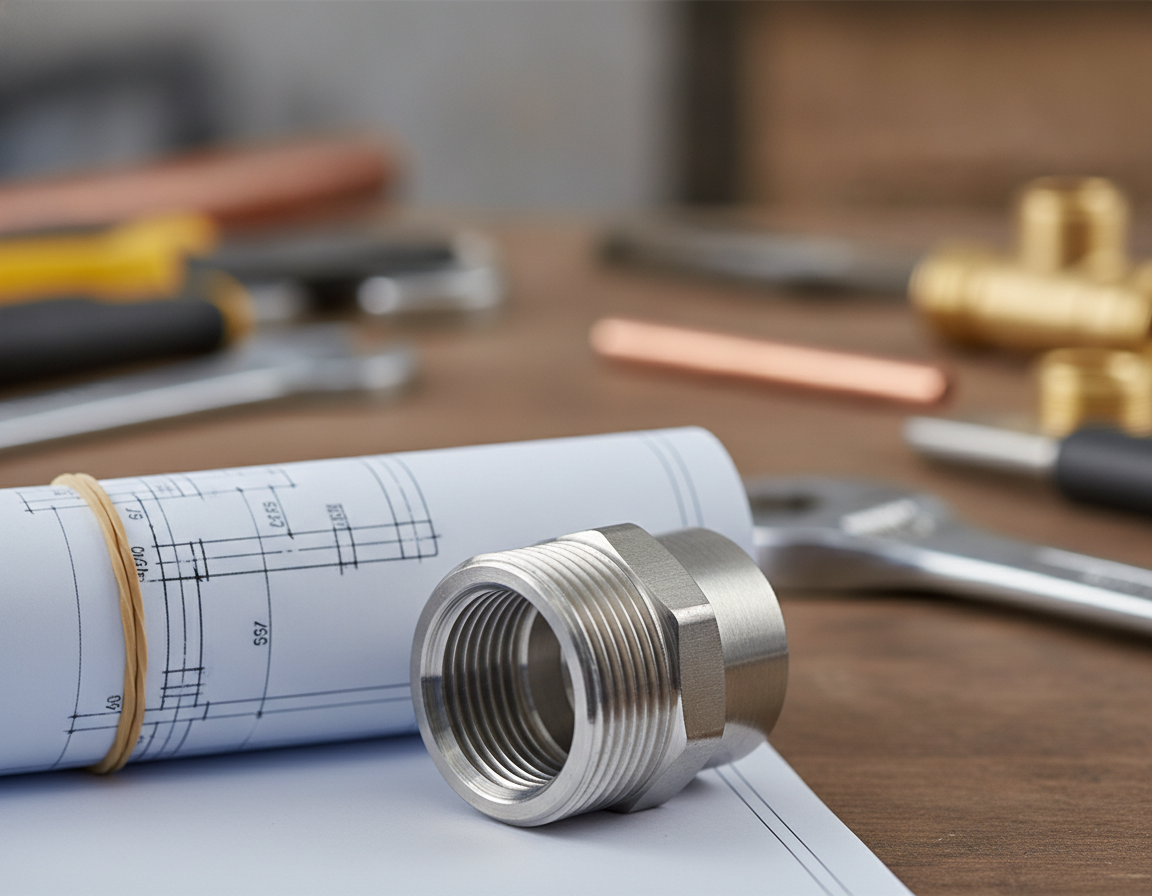

Fitting gender is critical when parts must mate correctly. A 1/2 Female To 3/8 Male Adapter is needed when the mating part has a male thread. For the opposite gender, a 3/8 Female To 1/2 Male Adapter is used. Installers will also find 1/2 Male To 3/8 Female Adapter and 1/2 Male To 3/8 Male Adapter variations for mixed systems.
Compression seal and NPT conversion options
Parts like 1/2 Compression To 3/8 Compression adapters maintain compression sealing on both ends. For threaded pipe networks, use a 1/2 Compression To 3/8 NPT or similar conversion fitting. When connecting to NPT, apply the correct thread sealant or PTFE tape to ensure a pressure-tight joint.
- Check part descriptions like 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter for OD vs. nominal sizing.
- Before cutting tubing or ordering replacements, verify thread pitch, gender, and size.
- Buy from reputable suppliers such as Mueller, Parker, or Watts to reduce mismatch risk.
Material Compatibility For Reliable Compression Connections
The choice of materials strongly affects the longevity of a joint. The fitting material should be selected according to tubing material, working pressure, and fluid type. This ensures a leak-free, corrosion-resistant, and galling-free connection. For applications involving corrosive or high-purity systems, a 3 8 Male To 1 2 Female Stainless Steel option is often the most reliable.
For many applications, the main material choices are brass, copper, and stainless steel. Brass adapters are commonly used for standard potable water and general plumbing. Copper fittings are ideal for copper tubing and soldered systems. Stainless steel provides excellent corrosion resistance and durability for high-pressure, chemical, or aggressive environments.
Compression fittings usually perform best with rigid tubing such as copper, stainless steel, nylon, and PEEK. Soft tubing, such as PEX, can also be used with the support of tubing inserts. The insert stiffens the tube wall so the ferrule can seat correctly without collapsing the tubing.
PTFE tubing offers excellent media compatibility and flexibility, but it can cold-flow under compression loads. To mitigate this, use fittings with redundant seals, internal O-rings, or back-up devices. When PTFE is used in compression joints, review the connection periodically for deformation or seepage.
The choice of ferrule is vital for seal reliability. Metal ferrules in brass or stainless steel offer stability across a wide temperature range. Single-piece ferrules are useful for softer tubes. Two-piece ferrule systems allow more control and can reduce galling by separating the front-ferrule and rear-ferrule functions.
Asymmetrical ferrules, with a cone-shaped profile, promote consistent seals in precision systems. They are designed to control their orientation. Symmetrical ferrules are simple to assemble, although they may wander on some hard plastic tubing. Choose the ferrule geometry based on tubing stiffness and service demands.
When selecting materials, consider the pressure, temperature, and media involved. For high-pressure, high-purity, or aggressive fluid service, choose stainless components with compatible ferrules. For routine domestic plumbing, a brass compression adapter or copper compression fitting offers a balance between cost and performance.
Best Practices And Mistakes To Avoid During Installation
Effective installation starts out with clean, square tubing and the correct parts. Following best practices cuts down on leaks, callbacks, and unnecessary rework. A pre-assembly checklist can preserve time and materials.
Preparing Pipe Ends By Cutting, Deburring, And Cleaning
Ensure tubing cuts are square with a quality cutter. Crooked or uneven cuts can trigger leaks. Deburring tools clear away sharp edges and metal slivers.
Clean the ends with a lint-free cloth to remove oil, dirt, and metal dust. For soft tubing like PEX, install a rigid insert sized to the tubing ID. The insert helps proper ferrule seating. Cutting, deburring, and cleaning are critical steps for a dependable compression seal.
Correct Tightening: Turn Counts, Torque, And Over-Tightening Risks
After reaching finger-tight, follow the manufacturer’s recommended number of turns. Turn-count tightening often aligns with ferrule geometry more reliably than torque alone. The thread pitch directly relates to ferrule compression.
Do not over-tighten, because excessive force can flatten the ferrule, widen the contact area, and cause leaks. For stainless fittings, moderate torque is best to avoid galling. Only use isopropyl alcohol as a temporary assembly aid when the manufacturer permits it.
Disassembly, Reassembly, And Ferrule Replacement Limits
Most compression fittings can be opened a limited number of times. Ferrules often swage onto tubing after the first installation and may not reseal correctly if reused. Inspect the ferrule for deformation if you remove a fitting.
Ferrules with work-hardening should be replaced. If the fitting has been repeatedly assembled and removed, replace the ferrule and consider replacing the fitting body to restore a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Correcting these problems limits call-backs and extends long-term system performance.
Choosing The Correct Adapter With Better Search Terms
Choosing the right adapter starts with precise search terms and a thorough part description review. Specific search phrases help match the right item and prevent returns. Common search terms include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter for swift results.
Important description details include male/female orientation, diameter, and thread type. Listings like 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter identify which end accepts tubing or pipe. Ensure the diameter refers to tubing OD or nominal pipe size.
Search variants are valuable because suppliers often use different naming systems. Search for 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, and 3/8Th To 1/2 Adapter to find compatible parts across catalogs. Suppliers such as Installation Parts Supply and Grainger may describe the same fitting under several names.
Adapter orientation should align with the mating parts. A male-to-female fitting such as 1 2 Male To 3 8 Female Adapter may be the right choice for connecting a rigid pipe run to a hose or supply line. Female-to-female adapters are used when two male-threaded parts need to be joined.
Use extra care with hybrid fittings that combine different thread types. A 1/2 Compression To 3/8 NPT or a 1/2 Female Compression To 1/2 Male NPT combines compression and pipe thread on opposite ends. Use thread sealant only as specified by the manufacturer.
Choosing the right material is important for corrosion resistance, compatibility, and service life. Brass and stainless steel are commonly selected choices. Ensure compatibility with copper, PEX, or PTFE tubing to avoid galvanic corrosion when mixing metals.
When uncertain, cross-check part numbers and review product photos closely. Using keywords such as 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter can improve the search for the right match.
Troubleshooting Leaks And Performance Issues
Compression-connection leaks and pressure loss should be handled with a systematic process. Start with a visual inspection, then use simple checks to identify the problem. Always prioritize safety when working with live systems.
Diagnosing Common Causes
First, inspect the ferrule for uneven marks or gaps. Look for nuts that are damaged. Ensure the tubing is cut square and fully inserted. Make sure the adapter type suits the system so thread mismatches are avoided.
Diagnostic Checks To Follow
- Look closely to confirm the ferrule is seated and the nut is properly engaged.
- Turn the nut slightly and feel for smooth engagement; roughness can point to thread damage.
- Measure the tubing diameter and inspect for roughness, flattening, or ovality that may stop a proper seal.
- Pressure-test the connection at low pressure before returning to service.
Useful Repair Steps
If a joint appears loose, retighten to the recommended specification. Do not over-tighten, because excess force can flatten the ferrule.
For swaged, scored, or distorted ferrules, replace them along with the nut and fitting body if necessary. Avoid mixing ferrules and fitting bodies from different manufacturers because mismatched taper, length, or geometry can weaken the seal.
For soft tubing, install an internal insert sized to the tube so the wall is supported and sealing improves. Where corrosion is a concern, stainless steel fittings can improve service life.
Addressing PTFE Creep And Cold Flow
Preventing PTFE cold flow depends on specific sealing strategies. Use fittings with internal O-rings, redundant seals, or mechanically backed ferrule designs that resist creep.
Schedule periodic inspections because cold-flow can develop over time even after a correct installation. If PTFE tubing shows deformation, replace it and consider using a secondary or backup sealing method.
| Issue | Fast Check | Best Action |
|---|---|---|
| Weeping at nut | Loose nut; visible gap at ferrule | Retighten carefully and replace ferrule if needed |
| Pressure-related seepage | Check for oval tube or bad ferrule seat | Cut tube square, add insert, and replace ferrule |
| Gradual seepage | Inspect for tubing creep, collapse, or cold-flow | Use PTFE cold flow prevention measures; switch to reinforced tubing or add O-ring seals |
| Damaged or crossed threads | Rough engagement when tightening | Replace nut or fitting body; retighten to spec on new parts |
| Rust, pitting, or material breakdown | Visible rust or pitting | Use corrosion-resistant fittings and matching ferrules |
Compression Adapter Applications And Use Cases
Around the home, compression adapters are regularly needed for many plumbing tasks. They commonly join supply tubing to faucet, toilet, and fixture inlets. For example, a sink supply line adapter may be needed when faucet inlets and sink supply posts use different sizes.
Residential work commonly includes sink supply lines, faucet connections, toilet hookups, and appliance connections. A water heater compression adapter is useful for replacing an old tank or connecting a new valve. It is necessary to choose parts that can handle household water pressure and match the ferrule material to the tubing.
In commercial and industrial settings, the requirements are more stringent. High-pressure compression fittings may be used in process lines, bottled gas systems, and HVAC equipment. For these applications, stainless ferrules and two-piece ferrule designs are recommended to withstand creep, corrosion, and vibration.
For instrumentation and high-purity systems, fittings must limit contamination and out-gassing. Choose materials that are compatible with autoclave cycles and clean-room environments. Ensure the pressure ratings and traceability are met when selecting components for lab or medical equipment.
Mixing parts from different manufacturers can pose risks. Differences in ferrule taper, thread pitch, or ferrule length can prevent proper sealing. For best results, buy fittings and ferrules from the same vendor, or verify compatibility through Installation Parts Supply or manufacturer specifications.
When sourcing parts, carefully check product pages for exact outer diameter, thread pitch, and material. That step cuts down on rework in the field. Correct part selection is important for preventing leaks and extending service life in residential and commercial systems.
Final Thoughts
Compression adapters can adapt tubing when the correct part is selected and installed properly. Knowing the main parts—nut, ferrule, and body—makes selection and installation easier. That understanding helps you match size, gender, and thread type, including parts such as a 3/8 to 1/2 converter or 1/2 female to 3/8 male adapter.
The material of the adapter is also critical. Brass and stainless steel are often preferred for high-pressure, corrosive, or harsh chemical environments. Copper is often practical for many household and residential plumbing applications.
Adhere to the best installation practices. Make square cuts and deburr the tubing ends. Use inserts for soft PEX or nylon tubing. Tighten according to the recommended turn count and avoid over-tightening.
For troubleshooting, check ferrule seating and thread integrity. After disassembly, replace ferrules that are swaged. Consider using redundant seals or alternative materials to prevent PTFE cold-flow.
When buying fittings, use trusted suppliers and detailed product specifications. Installation Parts Supply recommendations can support compatibility. They offer a wide range of adapters, reducers, and conversion fittings. Choosing the right parts and following proper installation techniques will minimize leaks and extend system lifespan.
